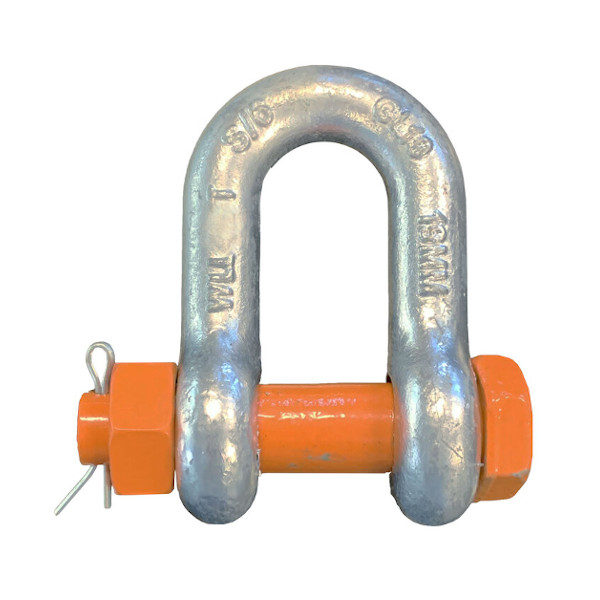

Ravni škopci s maticom
Ravni visokootporni škopac s maticom i rascepkom – nosivost 2000kg – svornjak fi 16mm – faktor sigurnosti 5:1 – norma HRN EN 13889
| Brand |
Gutman |
|---|
Opis
- izrađen od visokootpornog čelika
- jednostavna uporaba
- za formiranje privremenih spojeva
- faktor sigurnosti 5
- pocinčano
- za radne sredine od -20°C do +200°C
- sukladni normi EN 13889

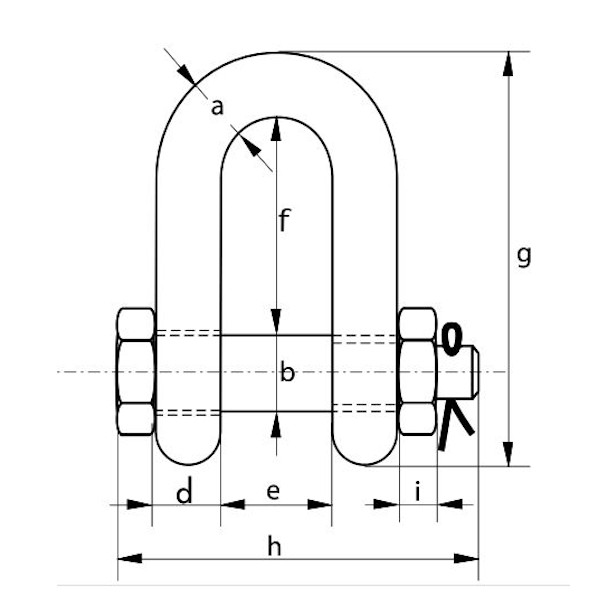

Tablica
|
Tip |
Nosivost |
b |
b |
a |
h |
i |
e |
f |
Težina |
|
T |
mm |
inch |
mm |
mm |
mm |
mm |
mm |
kg |
|
|
PSNB 2 |
2 |
16 |
1/2 |
13 |
71.5 |
8 |
20.15 |
41.5 |
0.28 |
|
PSNB 3.25 |
3.25 |
20 |
5/8 |
16 |
89 |
10 |
27 |
51 |
0.6 |
|
PSNB 4.75 |
4.75 |
22 |
3/4 |
19 |
105 |
10 |
32 |
60.5 |
1.04 |
|
PSNB 6.5 |
6.5 |
27 |
7/8 |
22.5 |
121 |
12 |
36.5 |
71.5 |
1.63 |
|
PSNB 8.5 |
8.5 |
30 |
1 |
25.5 |
136.5 |
13.5 |
43 |
81 |
2.38 |
|
PSNB 9.5 |
9.5 |
33 |
1 1/8 |
29 |
149.6 |
15 |
46 |
91 |
3.59 |
|
PSNB 12 |
12 |
36 |
1 1/4 |
32 |
164.5 |
18 |
51.5 |
100 |
4.65 |
|
PSNB 13.5 |
13.5 |
39 |
1 3/8 |
35 |
179 |
19 |
57 |
111 |
6.71 |
|
PSNB 17 |
17 |
42 |
1 1/2 |
38 |
194.5 |
20 |
60.5 |
122 |
8.05 |
|
PSNB 25 |
25 |
52 |
1 3/4 |
44.5 |
234 |
39 |
73 |
146 |
13.18 |
|
PSNB 35 |
35 |
60 |
2 |
51 |
262.5 |
46 |
82.5 |
171.5 |
19.3 |
|
PSNB 55 |
55 |
72 |
2 1/4 |
66.5 |
339 |
58 |
105 |
203 |
37.22 |
|
PSNB 85 |
85 |
85 |
2 3/4 |
76 |
394 |
64 |
127 |
216 |
65.3 |
