Trbušasti škopci s maticom

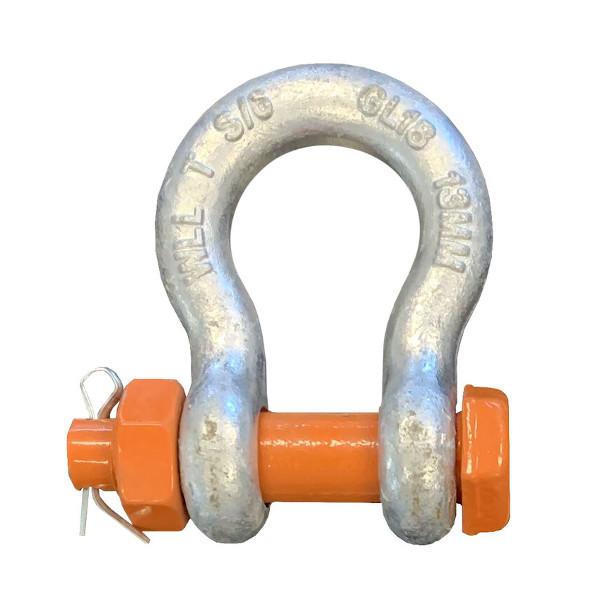

Trbušasti visokootporni škopac s maticom i rascepkom – nosivost 2000kg – svornjak fi 16mm – faktor sigurnosti 5:1 – norma HRN EN 13889
| Brand |
Gutman |
|---|
Opis
- izrađen od visokootpornog čelika
- jednostavna uporaba
- za formiranje privremenih spojeva
- faktor sigurnosti 5
- pocinčano
- za radne sredine od -20°C do +200°C
- sukladni normi EN 13889

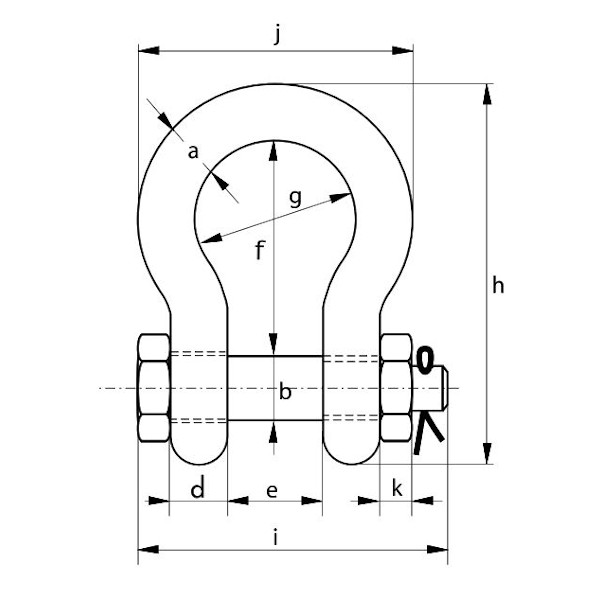

Tablica
|
Tip |
Nosivost |
b |
b |
a |
h |
i |
e |
f |
g |
k |
Težina |
|
T |
mm |
inch |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
|
|
PSOB 2 |
2 |
16 |
1/2 |
13 |
83.3 |
70.5 |
20.5 |
48 |
33.3 |
8 |
0.31 |
|
PSOB 3.25 |
3.25 |
20 |
5/8 |
17.5 |
106.5 |
89 |
27 |
60.5 |
42.9 |
10 |
0.67 |
|
PSOB 4.75 |
4.75 |
22 |
3/4 |
20.5 |
125.5 |
105 |
32 |
71.5 |
50.8 |
10 |
1.14 |
|
PSOB 6.5 |
6.5 |
27 |
7/8 |
24.5 |
148.1 |
121 |
36.5 |
84 |
58 |
12 |
1.76 |
|
PSOB 8.5 |
8.5 |
30 |
1 |
27 |
166.6 |
136.5 |
43 |
95 |
68.4 |
13.5 |
2.58 |
|
PSOB 9.5 |
9.5 |
33 |
1 1/8 |
32 |
190 |
149.5 |
46 |
108 |
74 |
15 |
3.96 |
|
PSOB 12 |
12 |
36 |
1 1/4 |
35 |
209.6 |
164.5 |
51.5 |
119 |
82.6 |
18 |
5.06 |
|
PSOB 13.5 |
13.5 |
39 |
1 3/8 |
38 |
232.7 |
179 |
57 |
133.5 |
92.2 |
19 |
7.29 |
|
PSOB 17 |
17 |
42 |
1 1/2 |
41 |
254 |
194.5 |
60.5 |
146 |
98.6 |
20 |
8.75 |
|
PSOB 25 |
25 |
52 |
1 3/4 |
57 |
313.5 |
234 |
73 |
178 |
127 |
39 |
14.22 |
|
PSOB 35 |
35 |
60 |
2 |
61 |
347.5 |
262.5 |
82.5 |
197 |
146 |
46 |
21 |
|
PSOB 55 |
55 |
72 |
2 1/4 |
79.5 |
453.2 |
339 |
105 |
267 |
184.2 |
58 |
42.12 |
|
PSOB 85 |
85 |
85 |
2 3/4 |
92 |
546 |
394 |
127 |
330 |
200 |
64 |
74.8 |
